AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain

Ampliación de imagen : AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain

Datos del producto:

Lugar de origen:	EE.UU
Nombre de la marca:	Cisco
Certificación:	CE
Número de modelo:	Los datos de las pruebas de seguridad deberán estar disponibles en el sitio web de la autoridad comp

Pago y Envío Términos:

Cantidad de orden mínima:	1
Precio:	$90-$110
Tiempo de entrega:	1 a 2 días
Condiciones de pago:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente:	150 por semana

Contacto

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain

descripción

Condición:	Nuevo	Garantía:	1 año
Tiempo de entrega:	1-2 días	Permitir ganancias de antena:	Hasta 6 dbi
Las dimensiones (W x D x H):	8.66 x 8.68 x 2.62 pulgadas (22 x 22 x 6.7 cm)	Marca:	Cisco
Modelo:	AIRE-AP1815I-H-K9

C9300-24T-E Specification

C9300-24T-E Specification
Part Number	C9300-24T-E
Product Description	Catalyst 9300 24-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports	24
Default AC power supply	350W AC
Available PoE power	--
Cisco StackWise-480	Yes
Cisco StackPower	Yes
Default power supply	PWR-C1-350WAC-P/2
Switching capacity	208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth	480 Gbps
Total number of MAC addresses	32,000
Total number of IPv4 routes (ARP plus learned routes)	32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries	32,000
IPv6 routing entries	16,000
Multicast routing scale	8000
QoS scale entries	5120
ACL scale entries	5120
Packet buffer per SKU	16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries	64,000 flow on 24- and 48-port Gigabit Ethernet models
DRAM	8 GB
Flash	16 GB
VLAN IDs	4000
Total Switched Virtual Interfaces (SVIs)	2000
Jumbo frames	9198 bytes
Total routed ports per 9300 Series stack	208
Wireless bandwidth per switch	Up to 48 Gbps on 24-port Gigabit Ethernet model
Forwarding rate	154.76 Mpps
Dimensions (H x W x D)	1.73 x 17.5 x 17.5 Inches
Weight	16.33 Pounds
Mean time between failures (hours)	299,000
Safety certifications	● UL 60950-1 ● CAN/CSA-C222.2 No. 60950-1 ● EN 60950-1 ● IEC 60950-1 ● AS/NZS 60950.1 ● IEEE 802.3
Electromagnetic emissions certifications	● 47 CFR Part 15 ● CISPR22 Class A ● EN 300 386 V1.6.1 ● EN 55022 Class A ● EN 55032 Class A ● CISPR 32 Class A ● EN61000-3-2 ● EN61000-3-3 ● ICES-003 Class A ● TCVN 7189 Class A ● V-3 Class A ● CISPR24 ● EN 300 386 ● EN55024 ● TCVN 7317
Environmental

AIR-AP3802E-E-K9 Overview

AIR-AP3802E-E-K9 is one of the Cisco 3800 Series Access Points. The Cisco Aironet 3800 Wi-Fi access points are designed for large enterprise organizations that rely on Wi-Fi to engage with customers. The 3800 series provides multiple gigabit uplink speeds of 2.5 Gbps and 5 Gbps in addition to 100-Mbps and 1-Gbps speeds. It also delivers new 802.11ac Wave 2 standard. Cisco Aironet 3800 Series Wi-Fi access points are highly versatile and deliver the most functionality of any access points in the industry. AIR-AP3802E-E-K9 is designed for Indoor, challenging environments, with external antennas. Besides, it provides E regulatory domain.

Quick Specs

Table 1 shows the quick specs of AIR-AP3802E-E-K9.

Product Code	AIR-AP3802E-E-K9
Antennas	External Antennas
Permit Antenna Gains	Up to 6 dBi
Interfaces	- 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45)
Features	- 4x4 MU-MIMO with three spatial streams - MRC - 802.11ac beamforming - 20-, 40-, 80, 160-MHz channels - PHY data rates up to 5.2 Gbps - Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) - 802.11 DFS - CSD support
Regulatory Domain	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)
System	- 1024 MB DRAM - 256 MB flash
Dimensions (W x L x H)	8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)
Net Weight	4.6 lb (2.09 kg)

Product Details

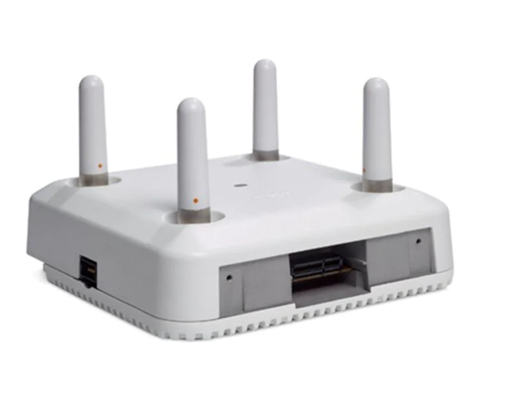

Figure 1 shows the appearance of the AIR-AP3802E.

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 0

· There are four antenna connectors and one LED indicator on the face of AIR-AP3802E.

Figure 2 shows ports and connections on the head of the AP.

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 1

Note:

①	Kensington lock slot	⑤	AUX / Gigabit Ethernet port
②	Mode button	⑥	PoE / mGig port
③	Console port	⑦	48 VDC power port
④	USB port

Figure 3 shows the external connector ports of the AP.

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 2

Note:

①	Smart Antenna Connector
②	Side Mount Modular Slot

Smart Antenna Connector: The 3800 series Access Points now support the capability of dual 5–GHz operation. When in this mode, a smart antenna connector must be used on the external antenna models, as the additional 5–GHz radio cannot use the same top antennas on the access point that are being used by the primary 5–GHz radio.

Side Mount Modular Slot: The AP 3800 has modularity support. This module design allows for installation onto the side of the access point. This allows for larger antenna arrays and does not constrict the development of Cisco and potentially third party modules as they are no longer limited by the physical size of the access point. Additionally, filtering is installed on the AP 3800 for cellular and other radio coexistence.

Supported External Antennas

Table 2 shows the supported external antennas of the AP.

Model	Descriptions
AIR-ANT2524DB-R	Cisco AIR-ANT2524DB-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Black, RP-TNC
AIR-ANT2524DG-R/=	Cisco AIR-ANT2524DG-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Gray, RP-TNC
AIR-ANT2524DW-R/=	Cisco AIR-ANT2524DW-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., White, RP-TNC
AIR-ANT2566P4W-R=	Cisco AIR-ANT2566P4W-R 2.4 GHz 6 dBi/5 GHz 6 dBi Directional Ant., 4-port, RP-TNC
AIR-ANT2524V4C-R=	Cisco AIR-ANT2524V4C-R 2.4GHz 2dBi/5GHz 4dBi Ceiling Mount Omni Ant., 4-port,RP-TNC
AIR-ANT2544V4M-R=	Cisco AIR-ANT2544V4M-R 2.4GHz 4dBi/5GHz 4dBi Multi Mount Omni Ant., 4-port,RP-TNC

Compare to Similar Items

Table 3 shows the comparison between two AP.

Models	AIR-AP3802E-E-K9	AIR-AP3802P-E-K9
Permit Antenna Gains	Up to 6 dBi	Up to 13 dBi
Interfaces	- 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45)	- 2 Ethernet ports - 100/1000/2500/5000 Multigigabit Ethernet (RJ-45) - CAT 5e cabling - Higher-quality 10GBASE-T (CAT 6/6a) cabling - 100/1000BASE-T autosensing (RJ-45 - AUX port) - Management console port (RJ-45)
Regulatory Domain	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)	E (E regulatory domain): - 2.412 to 2.472 GHz; 13 channels - 5.180 to 5.320 GHz; 8 channels - 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz)

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 3

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 5

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 6

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 7

AIR-AP3802E-E-K9 - Cisco Aironet 3802E Access Point 802.11ac Wave 2 AP w/CleanAir, 4x4:3, Mod, External Antenna, mGig, E Regulatory Domain 8
